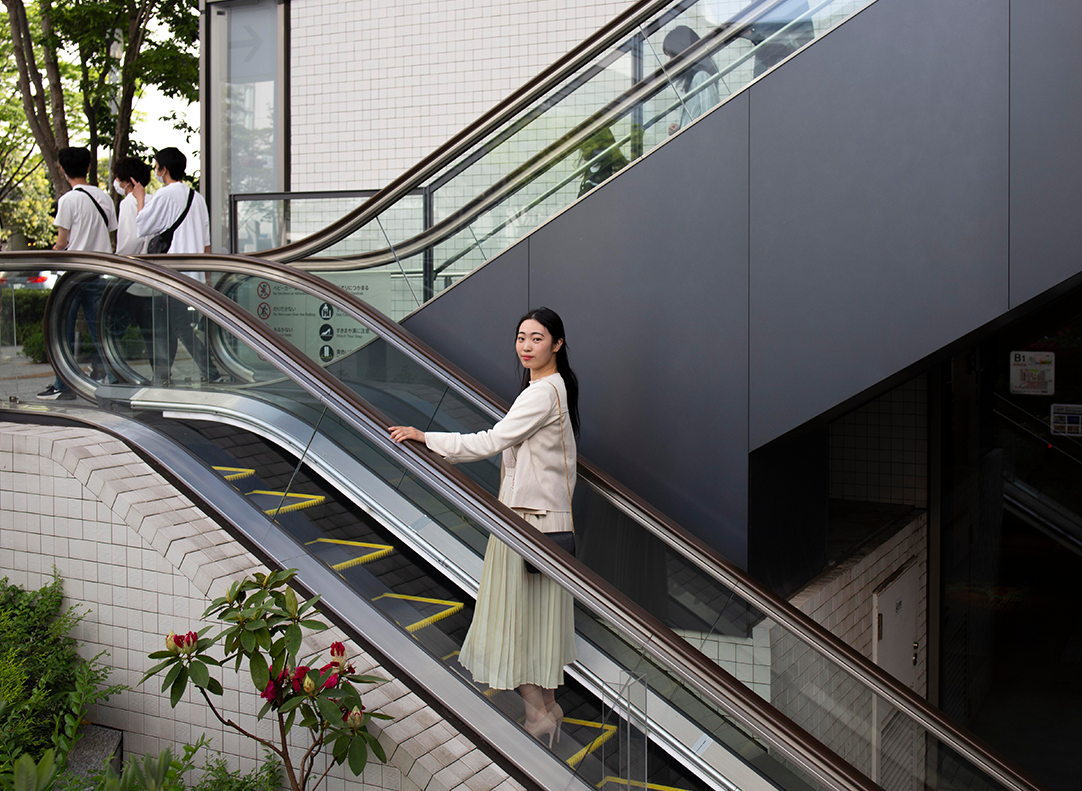

Public Transit Escalators

Elegant, Quiet, Comfortable & Safe

  • The City Lift public transport escalator is designed to handle high volumes of passengers consistently and comes equipped with glass handrails for enhanced aesthetics and safety.
  • These escalators feature adjustable sloping handrails, allowing for customization of the angle to fit various architectural designs and user needs.
  • They are specifically engineered for environments experiencing both high passenger traffic and challenging conditions, embodying resilience and durability.
  • City Lift public transport escalators excel in waterproofing, dustproofing, and corrosion resistance, meeting rigorous standards for performance under adverse environmental conditions.
ESCALATOR
  • The integration of an advanced video detection system enables real-time monitoring of passenger flow, interfacing with the rail transit's online environment and equipment monitoring system (BAS) for dynamic adjustment of energy-saving operations based on actual escalator usage.
  • Employing a sophisticated dual 64-bit microcomputer processor system, these escalators guarantee safe and efficient 24/7 operation, utilizing both frequency conversion and standard power frequency systems for optimal performance.
  • A voice announcement system and traffic lights are installed to provide passengers with clear instructions regarding the escalator's direction of movement, enhancing safety and user experience.
ESCALATOR
  • Available Rated Speed 0.30 / 0.50 MPS
  • Minimum Vertical Travel Height 1.50 M
  • Max Vertical Travel Height 10 M
  • Environment Indoor

Technical Specification


  • Ingress Protection : IP21
  • Available Step Width : 600 / 800 / 1000 MM
  • Fence : Safety Glass - Tempered
  • Step Material : Stainless Steel / Aluminium Alloy
  • Auto Reversal Protection
  • Hand Rail Entry Protection
  • OverSpeed Protection
  • Fault Indicator
  • Emergency Button
  • Available Inclination : 30 / 35 Degrees
  • Handrail Type : Slim
  • Inner and Outer Cover : Stainless Steel
  • Reversible
  • Hand Rail Speed Detection
  • Step Collapse / Loss and Roller Rupture Protection
  • Drive Chain Loose Protection
  • Automatic Lubrication System
  • Altitude: Upto 1000 Meters

Features


Safe & Reliable

Smooth Ride

Energy Efficient

Environment Friendly

Guaranteed uptime of 99.0% for the First 3 Years.

Lots of Options for Interiors and Fixtures

Backed by the City Lifts Clouds
